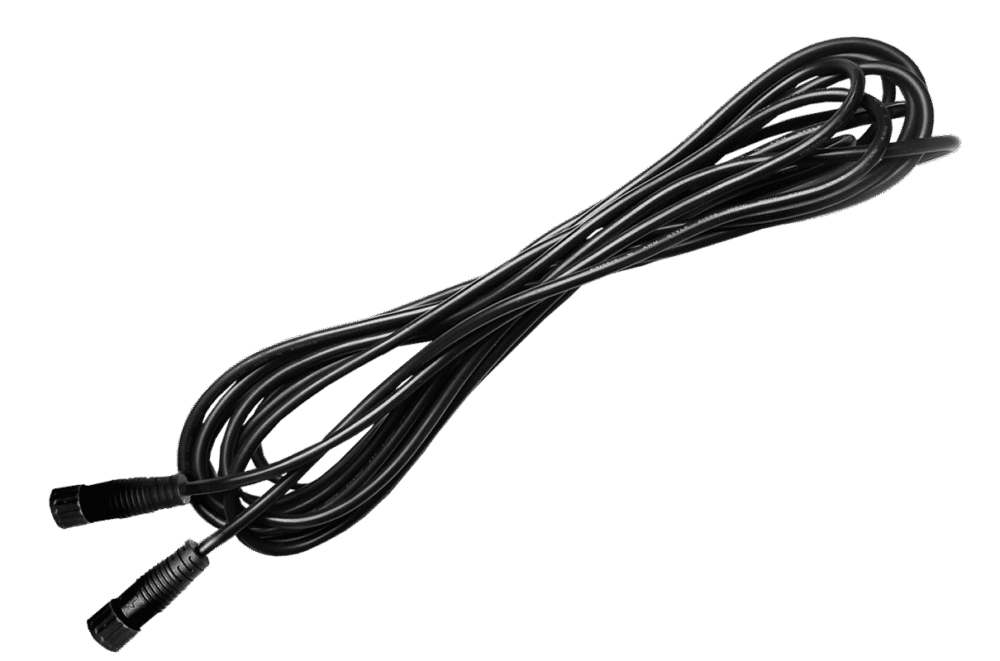

LUMATEK DAISY CHAIN 5M CONTROL CABLE

Description

This 5m long Control Link Cable is designed to daisy-chain your LUMATEK Controllable LED Fixtures allowing a stable and precise connection without any interference. Simply connect the M12 Self-locking male plug into the Signal Out LED structure output and the M12 Self-locking female plug into the Signal In LED structure input of the next fixture.


Lumatek Zeus LEDs and LED Accessories: See how to use and set-up the different versions here.

KEY SPECIFICATIONS

Product Code: LUMM0015



Wire Gauge:
UL 2464 3×22AWG 80℃ 300V VW-1

TECHNICAL/TEST DATA:
– Withstand voltage between conductor and insulator is 800 VAC, 2mA, test time 60S, no breakdown or leakage current occurs
– Temperature Resistance: 80℃
– Working temperature: -20℃-105℃
– Storage temperature:
-25℃-105℃
– IP65
– Comply RoHS

DOCUMENTS AND RESOURCES:
➥ Manual, Spec Sheet, Certificates, Reports, Photos
